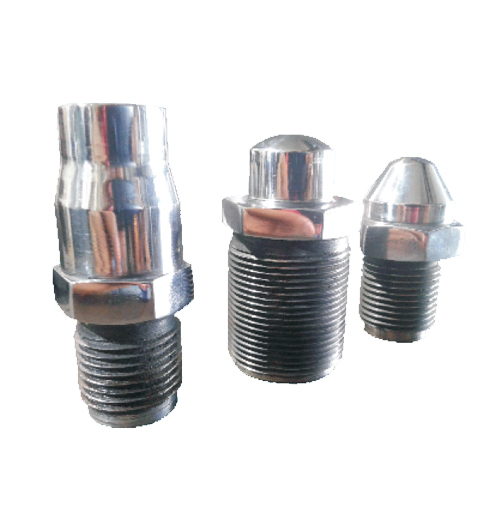

Nozzle Tips
| Product | Diameter Range | Material Name/No. | Process | Technicle Perameter | Material Type | Wear Resistance Ability | Corossion Resistance Ability |
| Nozzle | ---- | 1.8509 (EN41-B) | Gas Nitriding | - Nitriding Hardness: 60 - 65 HRC | PP / PC / PE / PS / ABS / PF | Good | Good |
| Nozzle | ---- | 1.2379 (D2) | Vacuum Quenching | - Hardness: 55 - 60 HRC | PE / PP / PA / ABS / POM / etc. | Excellent | Excellent |

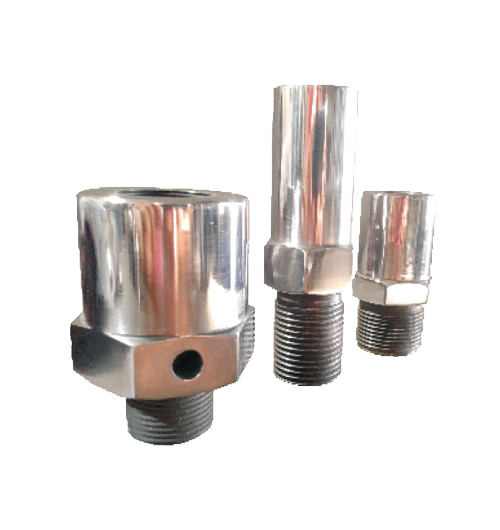

Nozzle Adapter
| Product | Diameter Range | Material Name/No. | Process | Technicle Perameter | Material Type | Wear Resistance Ability | Corossion Resistance Ability |
| Nozzle Adapter | ---- | 1.8509 (EN41-B) | Gas Nitriding | - Nitriding Hardness: 60 - 65 HRC | PP / PC / PS / ABS / PF | Good | Good |
| Nozzle Adapter | ---- | 1.2379 (D2) | Vaccum Quenching | - Hardness: 55 - 60 HRC | Material Contain 30% or Less Glass Fiber, Talc Filled, or Additive Fillers | Excellent | Good |

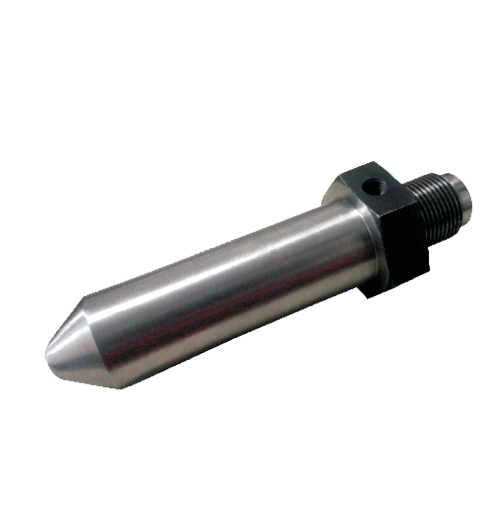

Extension Nozzle
| Product | Diameter Range | Material Name/No. | Process | Technicle Perameter | Material Type | Wear Resistance Ability | Corossion Resistance Ability |
| Extension Nozzle | ---- | 1.8509 (EN41-B) | Gas Nitriding | - Nitriding Hardness: 60 - 65 HRC | Common Low Density Plastics | Good | Good |
| Extension Nozzle | ---- | 1.2379 (D2) | Vaccum Quending | - Hardness: 55 - 60 | Material Containg 30% or Less Glass Fiber, Talc Fiber, or Additive Fillers | Excellent | Good |
